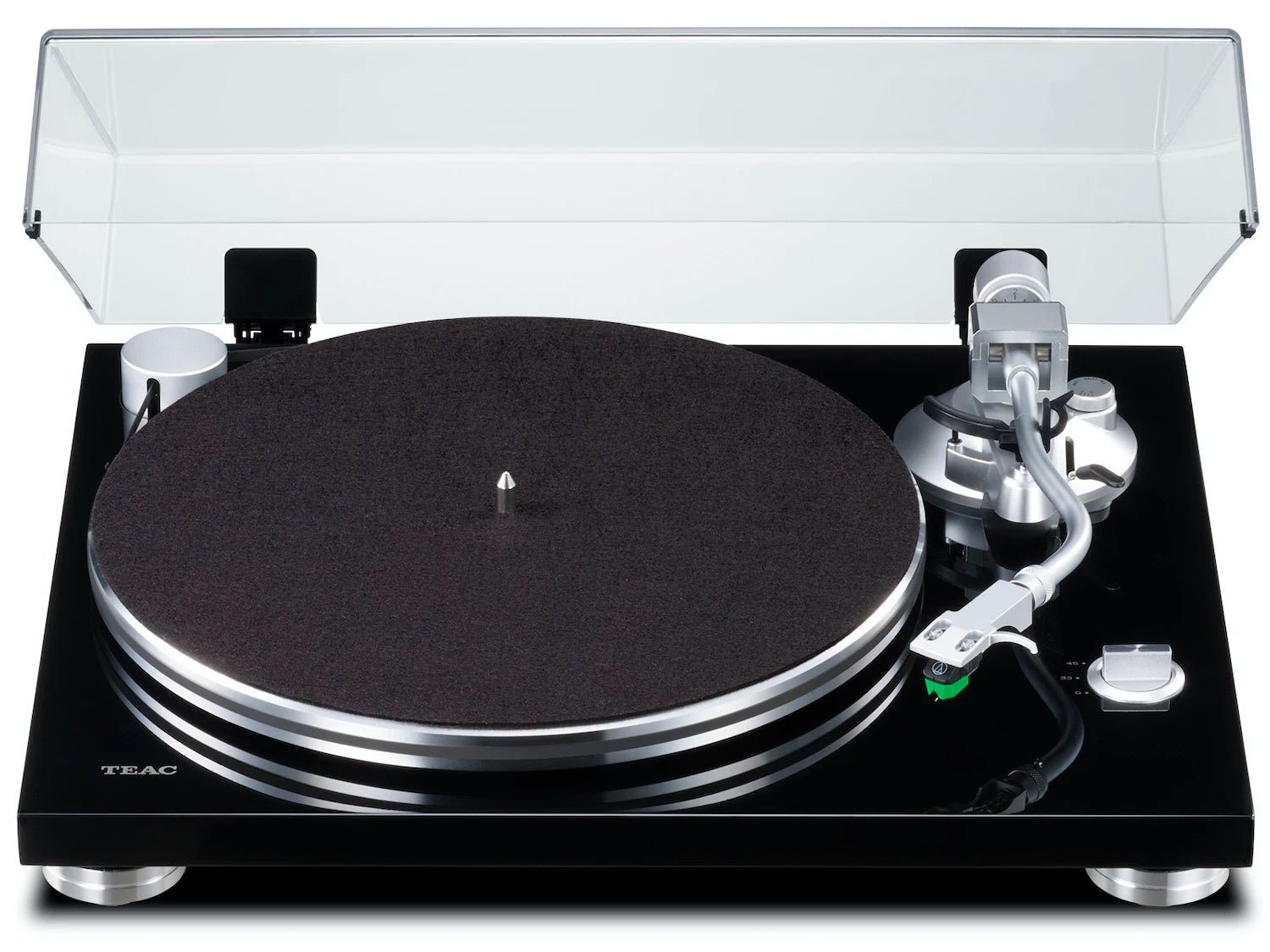

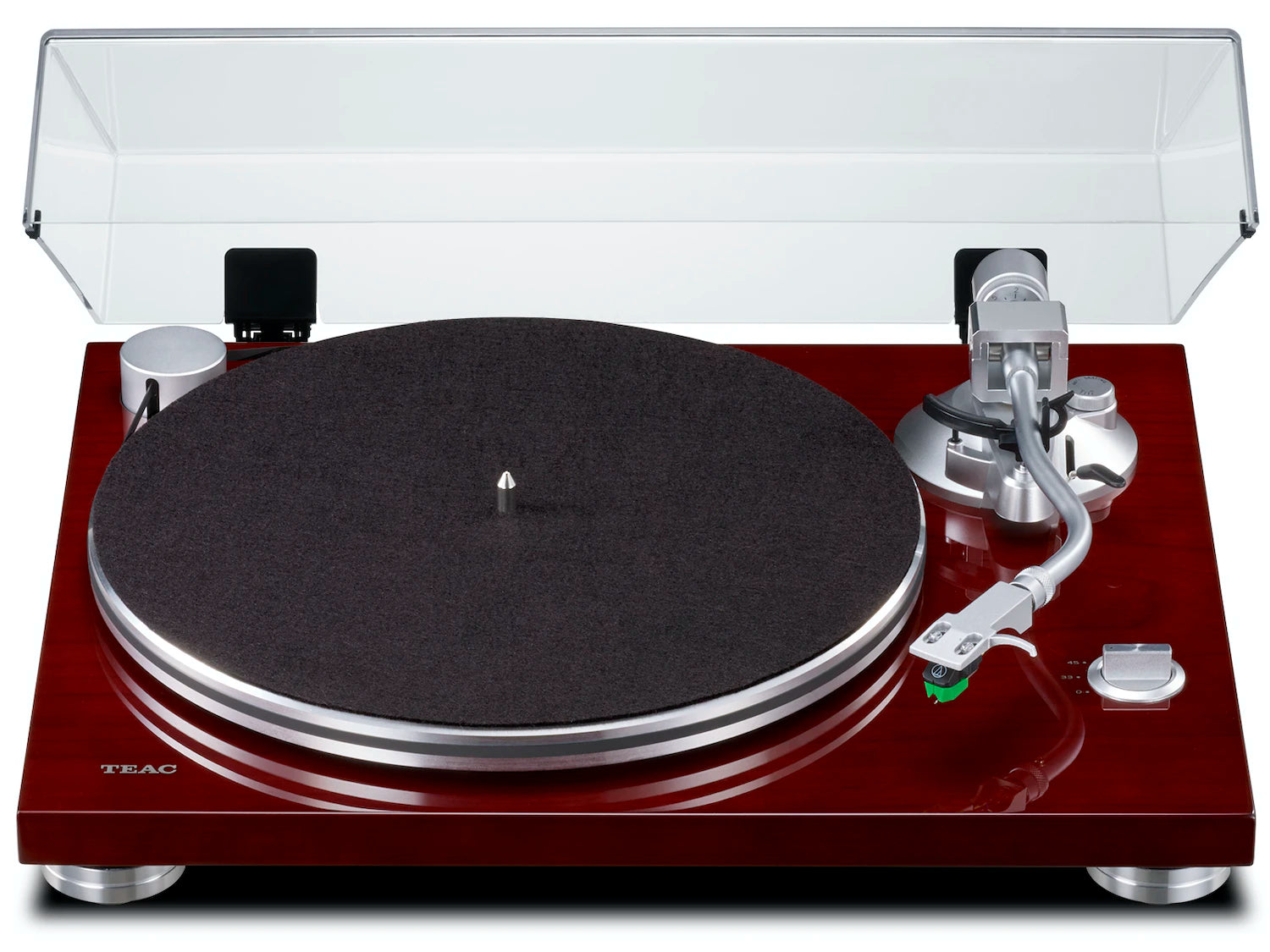

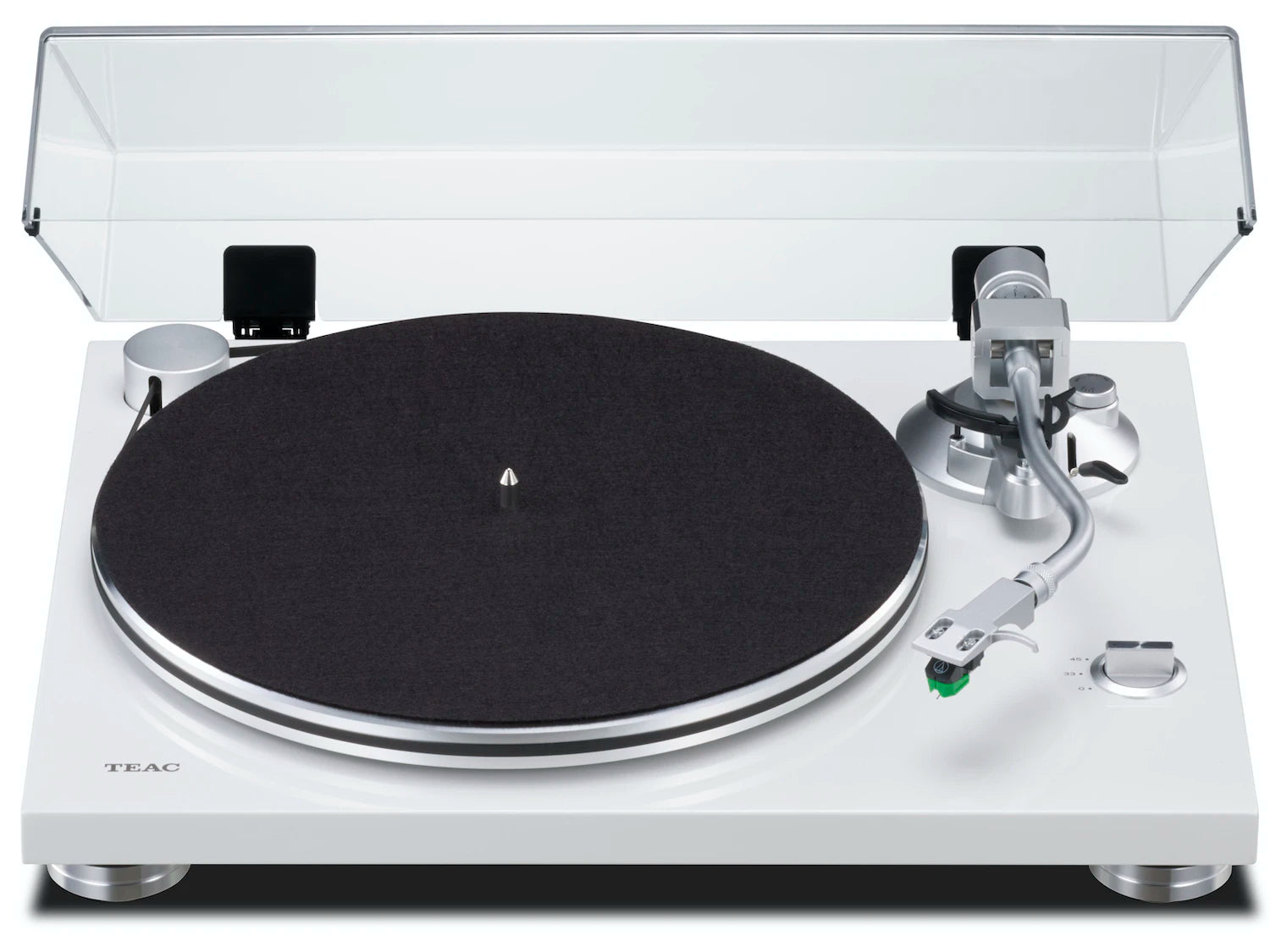

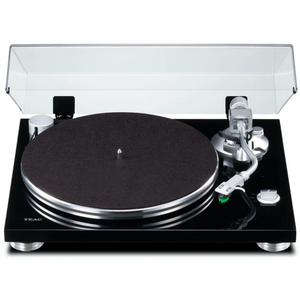

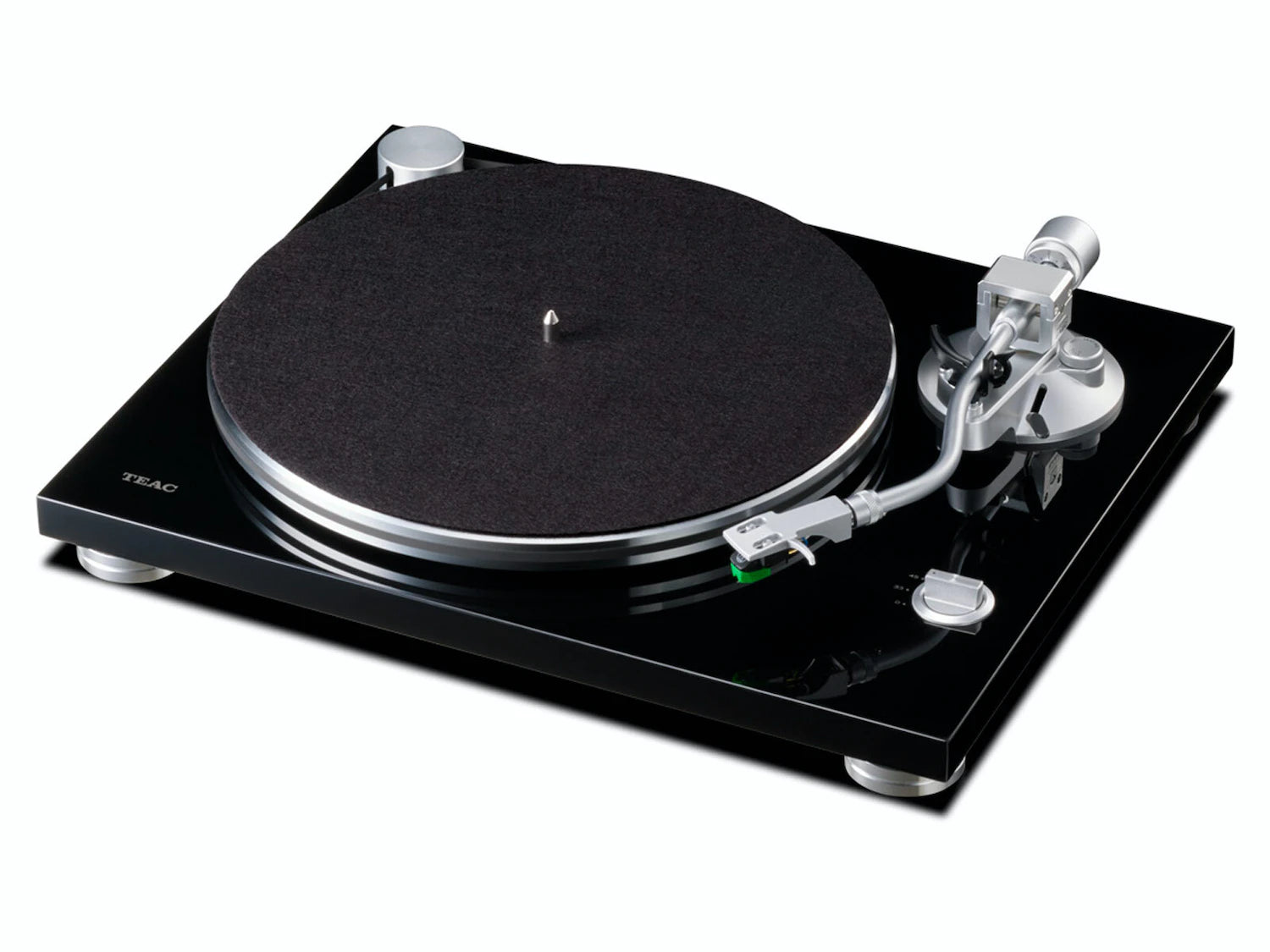

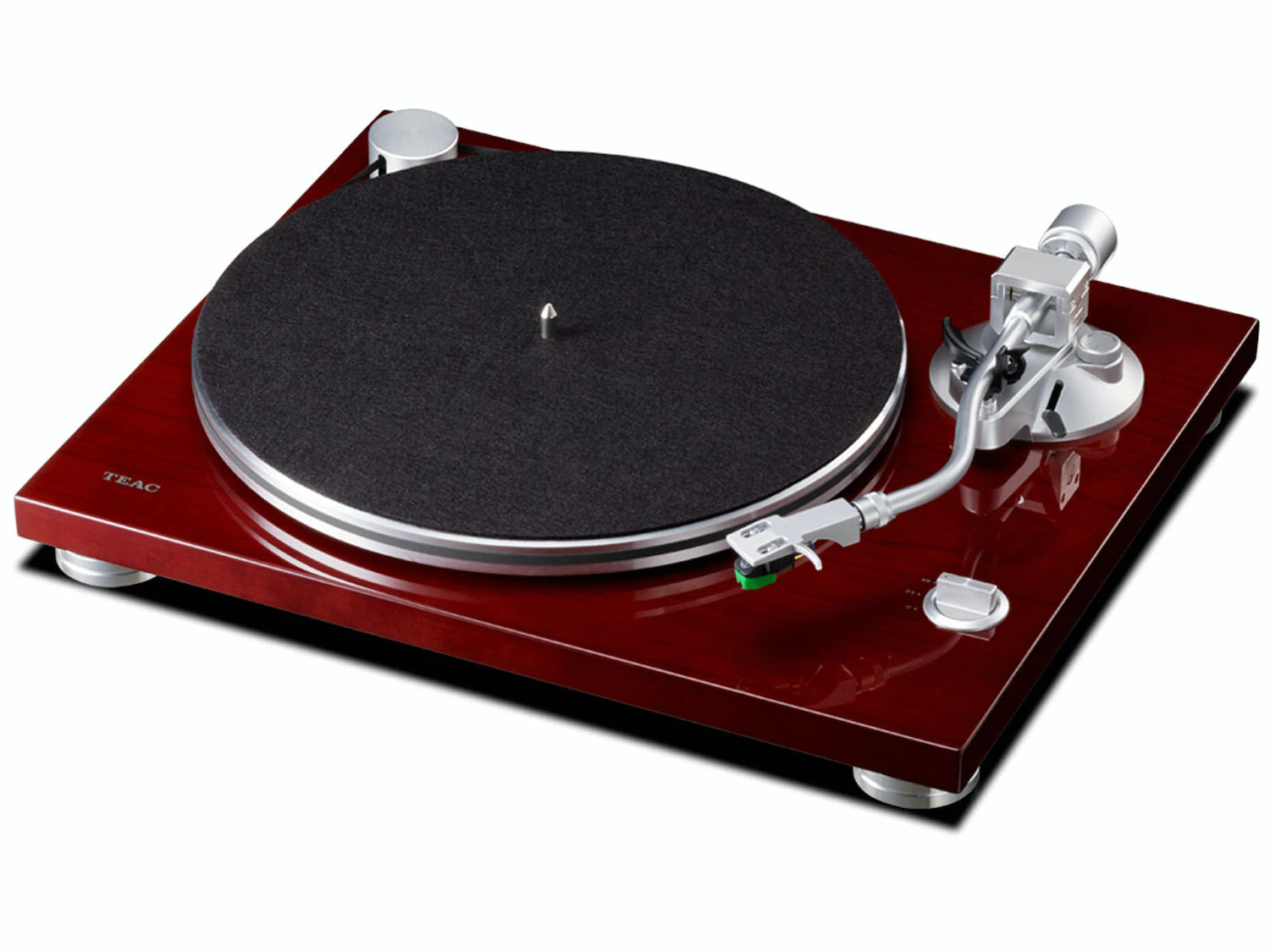

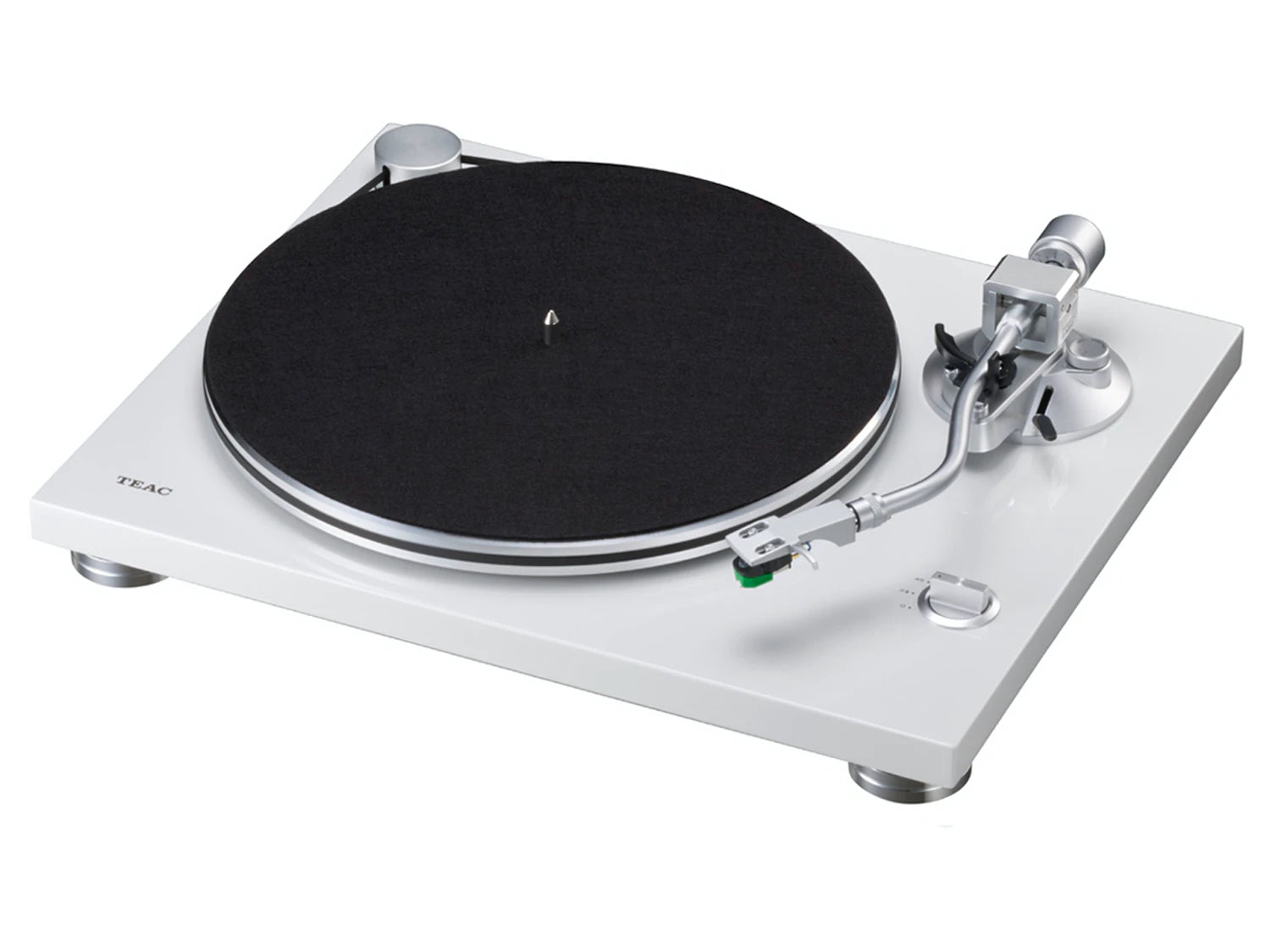

TEAC TN-3B-SE Belt Drive Turntable
Why choose us?
A new, high-performance standard for belt-drive analog turntables
The TN-3B-SE is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier.
It employs a new tonearm with knife-edge, pivot-point bearings, collaborated with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution. The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation. The TN-3B-SE also employs a VM-type cartridge the AT-VM95E manufactured by audio-technica and a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality.
The TN-3B-SE delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.
In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B's tone-arm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)。
The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.
* Replacement styli should be available at the retail store where you purchased the unit, or via the TEAC On-line store. (TEAC On-line store is available in selected countries.)
* The VM-series cartridge is a MM (Moving Magnet) type design, and is compatible with all conventional MM-type phono EQ amplifiers.
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.
The TN-3B-SE supports both 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.
The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.
In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.
Features at a glance
- Belt-drive mechanism
- 2-speed turntable supporting 33-⅓ and 45 rpm
- Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC
- Aluminum die-cast platter
- Built-in PHONO EQ amplifier compatible with MM-type cartridges
- Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage
- Anti-skating mechanism
- PHONO/LINE analog output (switchable)
- Gold-plated oxidation-resistant output connectors
- Pre-installed AT-VM95E cartridge supplied by audio-technica
- Rigid, high-density MDF plinth with multi-layered lacquer finish
- Shock-absorbing insulating feet
- GND terminal
- RoHS compliant
Technical Specifications :
| Turntable section | |
| Type | Belt-drive (External drive) |
| Motor | DC Motor |
| Rotation Speeds | 33-⅓ rpm, 45 rpm |
| Wow-and-Flutters | 0.1% or less |
| S/N Ratio | 67dB (A-weighted, 20kHz LPF) |
| Turntable (Platter) | |
| Material | Aluminum Die-cast |
| Diameter | 30cm |
| Tone-arm section | |
| Type | S-shape, Static-balanced |
| Effective Length | 223mm |
| Needle Pressure Range | 0g to 5.0g |
| Compatible Cartridge Weight | 3.0g to 12.0g 14g to 23g (including Head-shell) |
| Cartridge section | |
| Type | MM-type |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Needle Pressure | 1.8 to 2.2g (2.0g recommended) |
| Weight | 6.1g |
| Head-shell weight | 11g (including screws, nuts, and wires) |
| Compatible Stylus | AT-VMN95E * Average stylus life: approx. 300 hours. |
| Analog Outputs | |
| Connector | RCA Pin jack × 1 pair (Gold-plated) |
| Output Voltage | |
| PHONO | 4.0mV (1kHz) |
| LINE | 224mV (–13dBV) |
| Operating Power | AC 100 to 240V, 50/60Hz |
| Power Consumption | 1.5W |
| Standby Power | 0.5W |
| Overall Dimensions (W×H×D) | 420 × 117 × 356 mm / 16.5" × 4.6" × 14.0" (including protrusions) |
| Weight | approx. 5.0kg / 11.0 lbs. |
| Included Accessories | Felt Mat, EP Adapter, Counter Weight, Head-shell (AT-VM95E installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE053A-V120050), Owner's Manual (including Warranty Card) |
