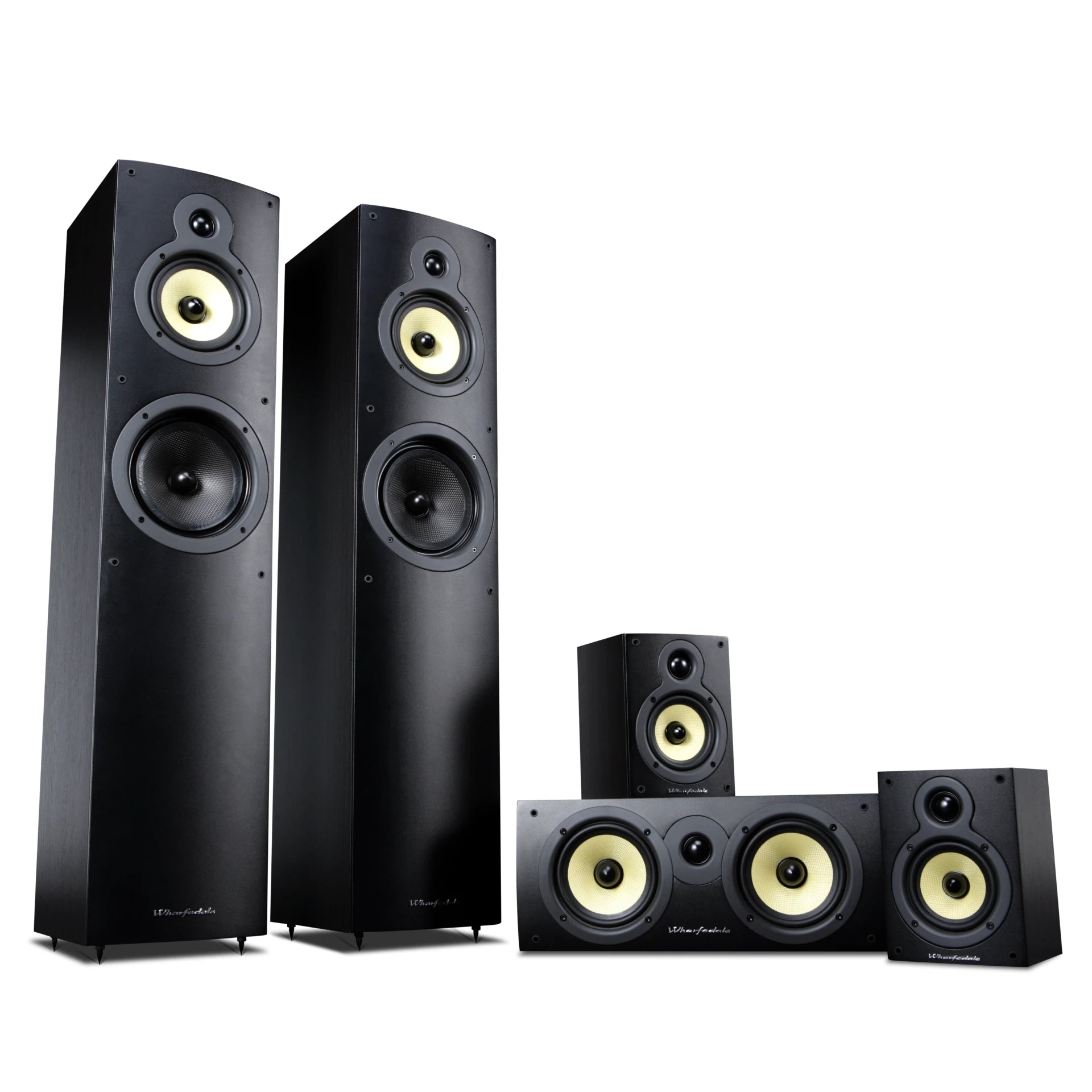

Wharfedale Crystal 4 5.0 Home Theatre Package
Guarantee Safe Checkout
Wharfedale Crystal 4 5.0 Home Theatre Package

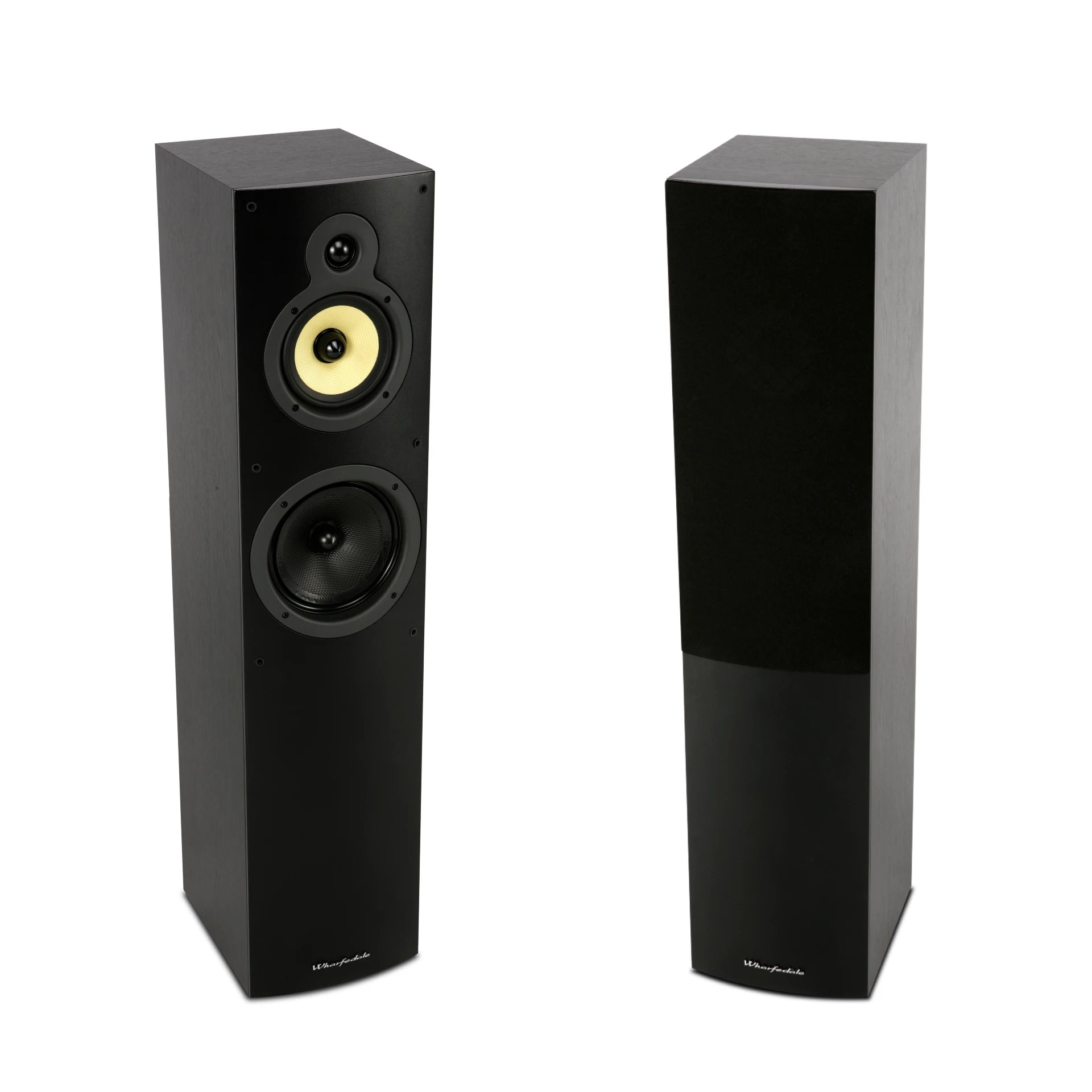

| General description | Bookshelf Speaker |
|---|---|
| Enclosure type | Bass Reflex |
| Transducer complement | 3-way |
| Bass driver | 165mm Polypropylene Cone |
| Midrange driver | 125mm Woven Kevlar Cone |
| Treble driver | 25mm Soft Dome |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifier power | 25-120W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 3.7Ω |
| Frequency response (+/-3dB) | 50Hz – 20kHz |
| Bass extension (-6dB) | 45Hz |
| Crossover frequency | 500Hz & 2kHz |
| Cabinet Volume (in litres) | 7.5L&21L |
| Dimensions (mm) | |
| Height (on plinth) | (900+22)mm |
| Width | 205mm |

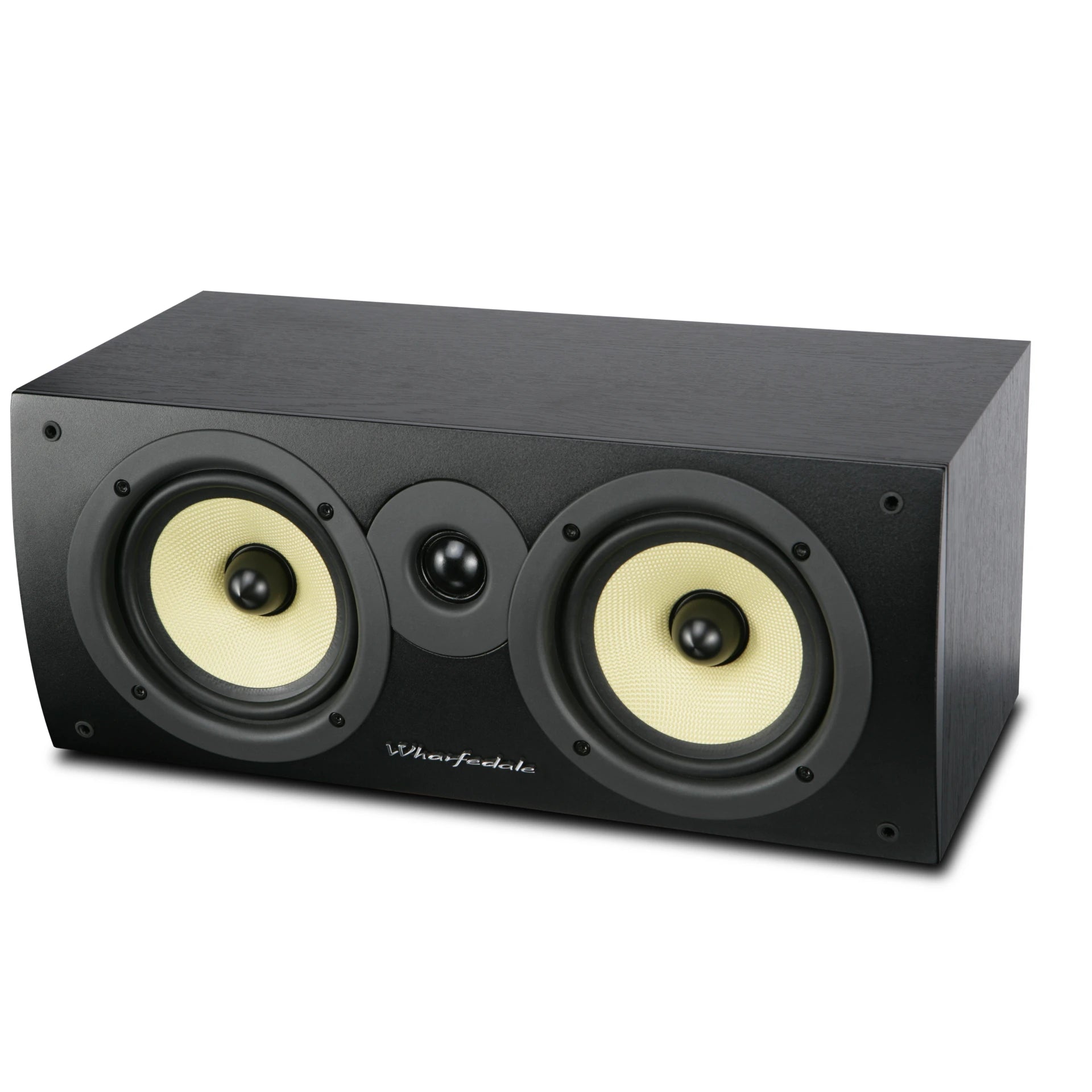

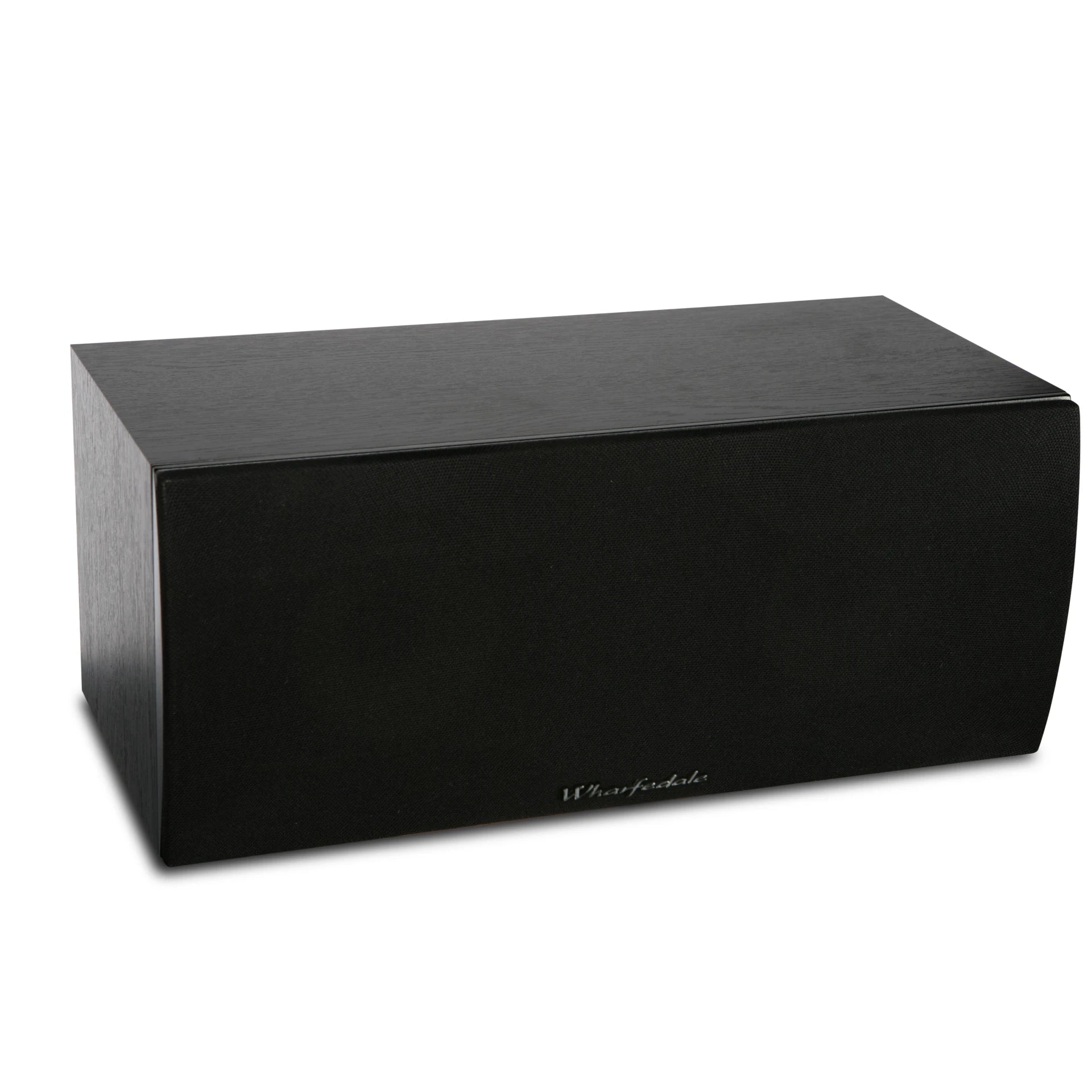

Wharfedale Crystal 4.C Centre Speaker Specifications
| General description | Centre Channel Speaker |
|---|---|
| Enclosure type | Bass Reflex |
| Transducer complement | 2-way |
| Bass driver | 125mm Woven Kevlar Cone x 2 |
| Treble driver | 25mm Soft Dome |
| AV shield | Yes |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 25-100W |
| Peak SPL | 95dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.2Ω |
| Frequency response (+/-3dB) | 70Hz – 20kHz |
| Bass extension (-6dB) | 65Hz |
| Crossover frequency | 2.4kHz |
| Cabinet Volume (in litres) | 8.2L |
| Dimensions (mm) | |
| Height | 172mm |
| Width | 415mm |
| Depth (with grille & terminal) | (192+10)mm |
| Carton size | 495 x 280 x 260mm |
| Net weight | 6.8kg each |
Wharfedale Crystal 4.1 Surround Speaker Specifications
| General description | Bookshelf Speaker |
|---|---|
| Enclosure type | Bass Reflex |
| Transducer complement | 2-way |
| Bass driver | 100mm Woven Kevlar Cone |
| Treble driver | 25mm Soft Dome |
| Sensitivity (2.83V @ 1m) | 86dB |
| Recommended amplifier power | 20-60W |
| Peak SPL | 95dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.3Ω |
| Frequency response (+/-3dB) | 75Hz – 20kHz |
| Bass extension (-6dB) | 70Hz |
| Crossover frequency | 3.4kHz |
| Cabinet Volume (in litres) | 2.3L |
| Dimensions (mm) | |
| Height | 194mm |
| Width | 141mm |
| Depth (with grille&terminal) | (147+10)mm |
| Carton size | 382 x 225 x 280mm |
| Net weight | 2kg each |
